GGT Power Transmission Equipment offers a wide range of products for all your technological needs.

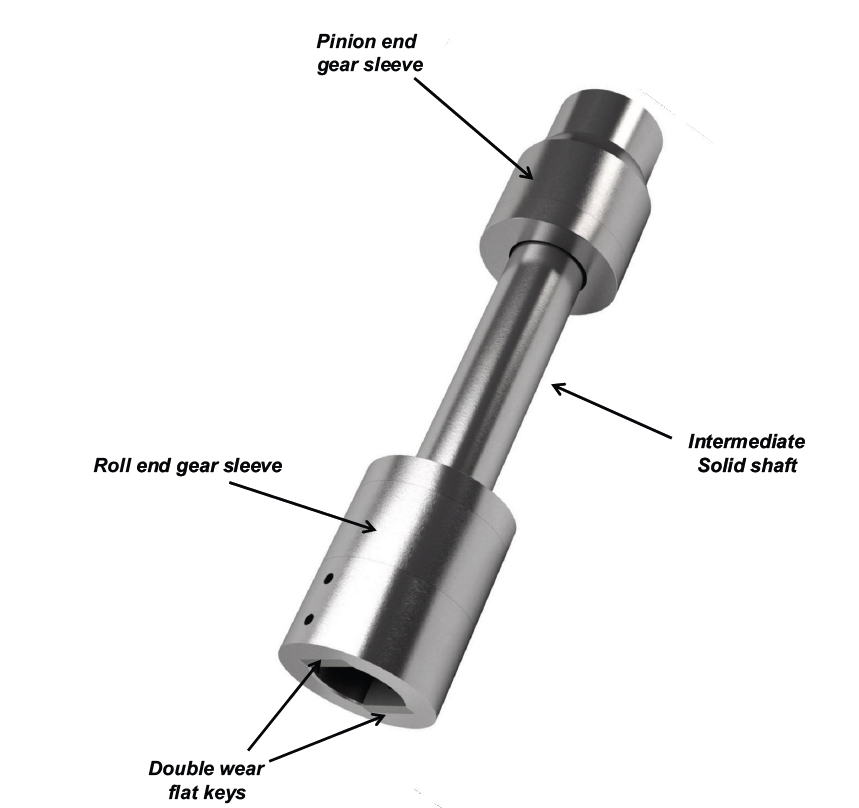

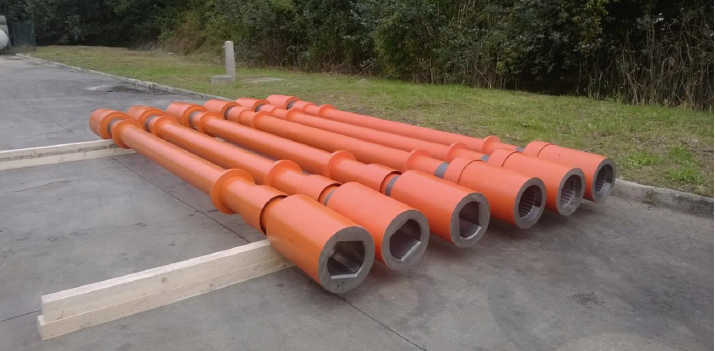

POWER TRANSMISSION EQUIPMENT: GEAR SPINDLES
Types:
GGT SRL Italy offer various types of mill gear spindles to cover all types of applications. Most common are as below:
Type | Material | Heat Treatment |
Type 1 | 42CrMo4 | Gas nitriding |
Type 2 | 31CrMo12 | Gas nitriding |
Type 3 | 41CrAlMo7 | Gas nitriding |
Type 4 | X38CrMoV51 (H11) | NA |
General Data:
Nominal torque up to 166 kNm
Outer diameter up to 1113mm
Finished bore tipology:
Keyway
Tapered
Splined
Shrink fitting and hydraulic removal
